EMI is the Australian distributor of Magnom magnetic filters. A Magnom unit pulls steel wear particles out of oil, fuel and coolant as they pass, without restricting flow. When the core is full it is cleaned and refitted, so there is no element to replace.

Australian distributor

Magnom
98.5%
Single-pass capture at 4 micron, as rated by Magnom
6,000 psi
414 bar working pressure on the CP range
Enquire about Magnom See the range

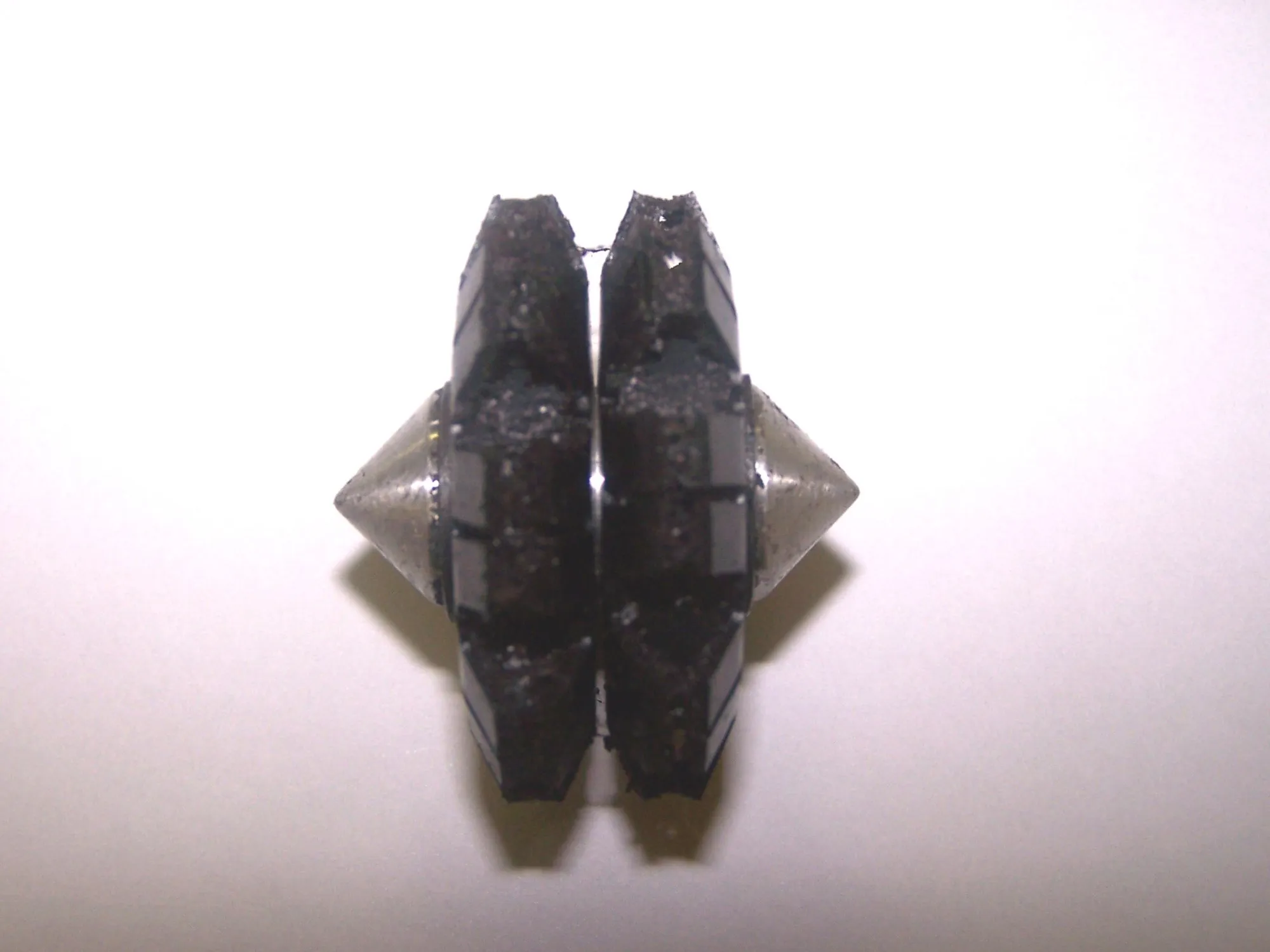

A Magnom core, two magnetic discs on a spindle, coated in black ferrous debris
A Magnom core loaded with ferrous debris.

How it works

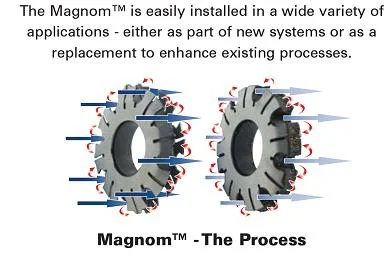

A magnet in the flow path.

Most filters are sieves, rated by the size of particle they stop. JCB's testing found conventional suction filters capture particles of around 125 micron and larger, while the most damaging wear particles are 1 to 40 micron.

A Magnom unit holds ferrous particles on a magnetic core instead of trapping them in a mesh. Oil passes the core freely, so the unit does not clog. Bosch Rexroth measured no increase in pressure drop with a fully loaded unit.

In testing by ExxonMobil and Allison Transmission, iron in a heavy transmission lubricant fell from about 450 ppm to about 25 ppm.

The core comes out, is cleaned and goes back in. The full test reports are on Magnom's testing page.

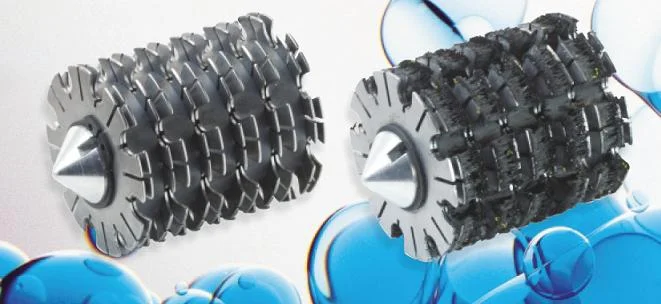

Two Magnom cores side by side: one clean and silver, one black with captured debris
A clean core beside a loaded one.

The range

From pump suction lines to process plant.

Specifications are Magnom's. Tell us the system, the fluid and the connection size and we will recommend a unit.

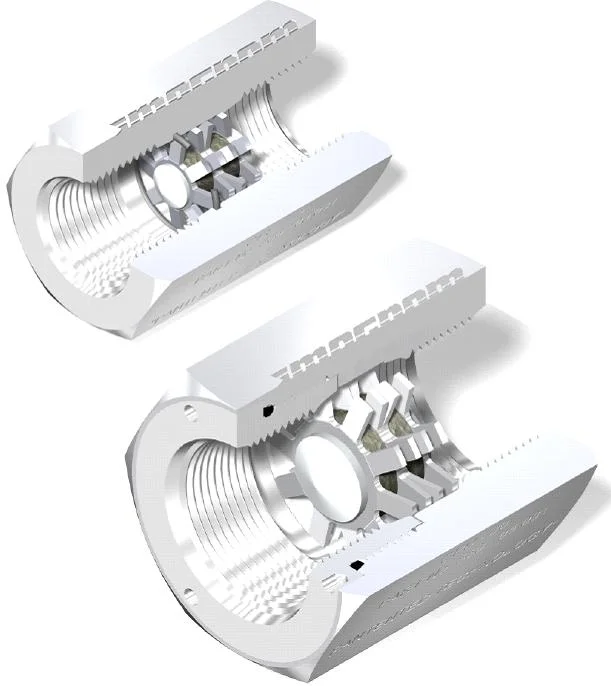

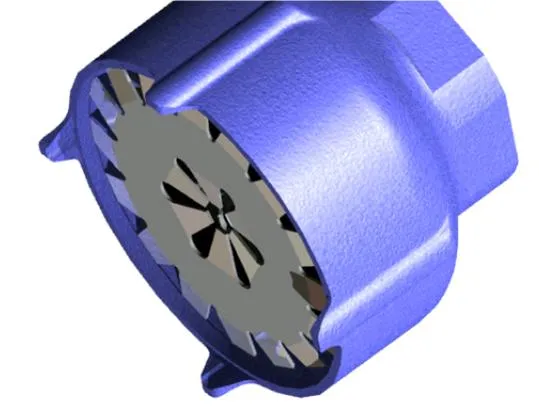

  • Cutaway drawing of a Magnom PumpMate, showing the magnetic core across the flow path
    PumpMate
  • A Magnom Max unit opened, with its magnetic core beside the housing
    Mini, Midi and Max
  • A yellow Magnom 20-core IPU standing beside its removed core
    IPU in-line process units

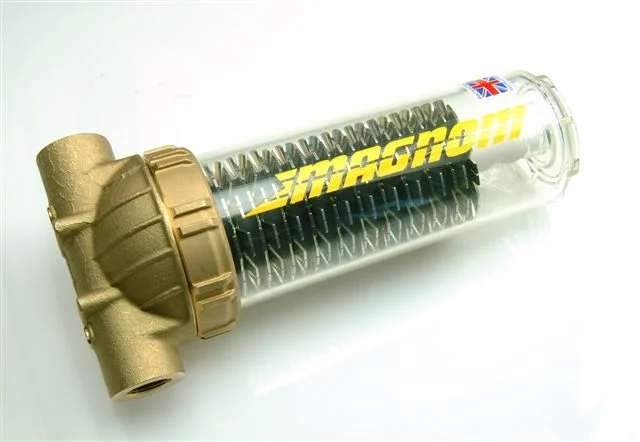

  • A Magnom Clear 10 with a brass head and a clear bowl showing the core inside
    Clear 5 and Clear 10

  • CP circuit protection

    High-pressure, bi-directional units for valve circuits, cylinders, actuators and hydrostatic systems.

    • Up to 6,000 psi (414 bar)
    • SAE-12, -16, -20
    • Aluminium alloy or stainless steel

  • PumpMate

    Protects hydraulic pumps on the suction side without restricting flow to the pump.

    • 3/4, 1ΒΌ, 2 and 3 inch NPT
    • Static and mobile systems

  • Mini, Midi and Max

    In-line units for general lubrication and hydraulic systems, gearboxes and transmissions.

    • SAE-8, -12, -20
    • Aluminium alloy housing

  • Max XL

    Higher capacity for large off-highway equipment, wind turbine gearboxes and epicyclic drives.

    • SAE-32 and 2 inch NPT
    • Anodised T6 aluminium alloy

  • IPU in-line process units

    Rough-service units for heavily contaminated lube oils, large hydraulic systems, transmissions, fuels and coolants.

    • 5-core and 20-core

  • Clear 5 and Clear 10

    Brass heads with a clear bowl, so the core can be checked without opening the unit.

    • Nylon 12 bowl
    • Coolants, cutting oils, water, machine tools

  • Clear 20 and Blue 20

    Lighter industrial duty with high dirt-holding capacity.

    • 22 cores
    • Clear SAN or blue polyethylene bowl
    • Coolants, cutting oils, wash systems

  • MPU process unit

    A direct replacement for standard bag filter housings in process plant.

    • Short: 20 inch, 15 cores
    • Long: 28 inch, 36 cores
    • Stainless steel

In service

Fitted in the field.

Magnom units on mobile machines, plant and workshop equipment in Australia.

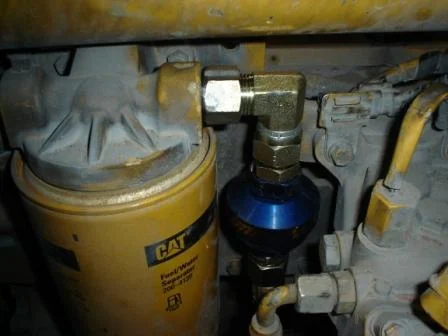

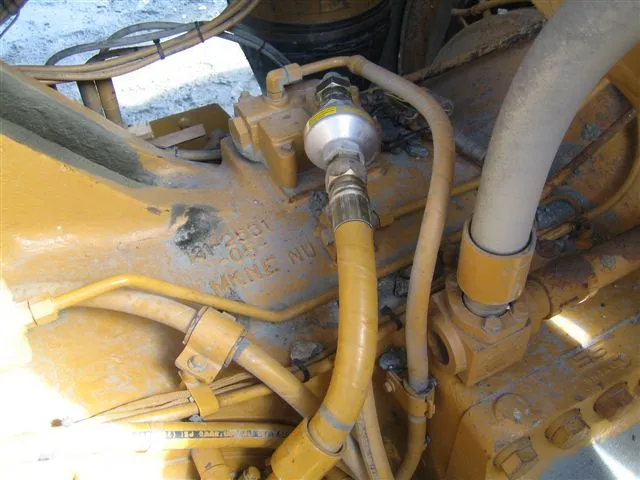

  • A Magnom unit fitted in an oil line on a yellow mining machine
    In an oil line on a mobile machine.

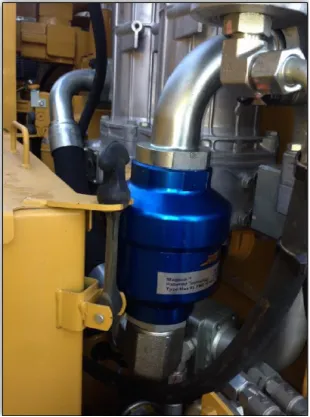

  • A blue Magnom unit fitted in a hydraulic line
    In a hydraulic line.

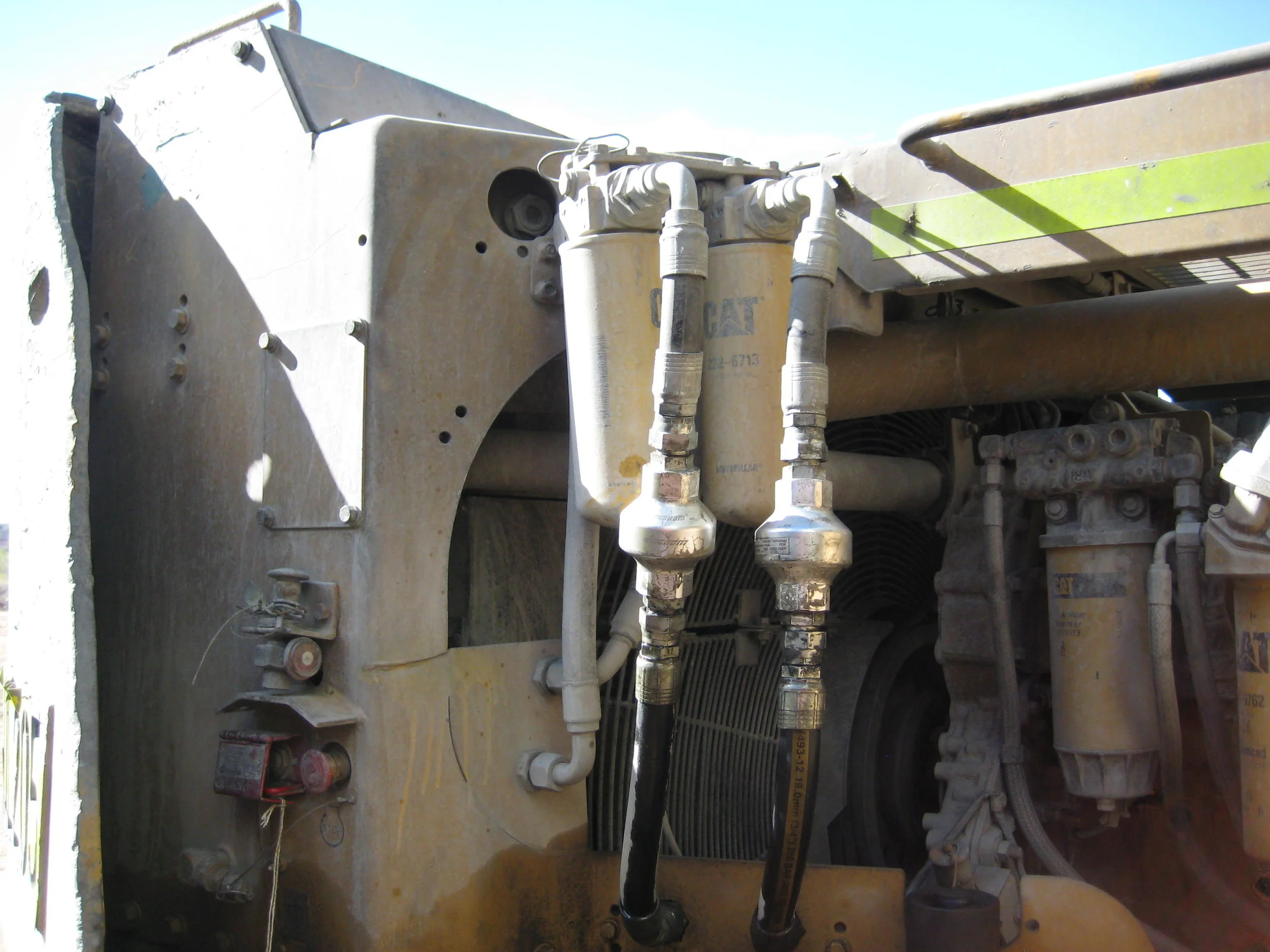

  • Two stainless in-line Magnom units plumbed in above a pair of Caterpillar filters

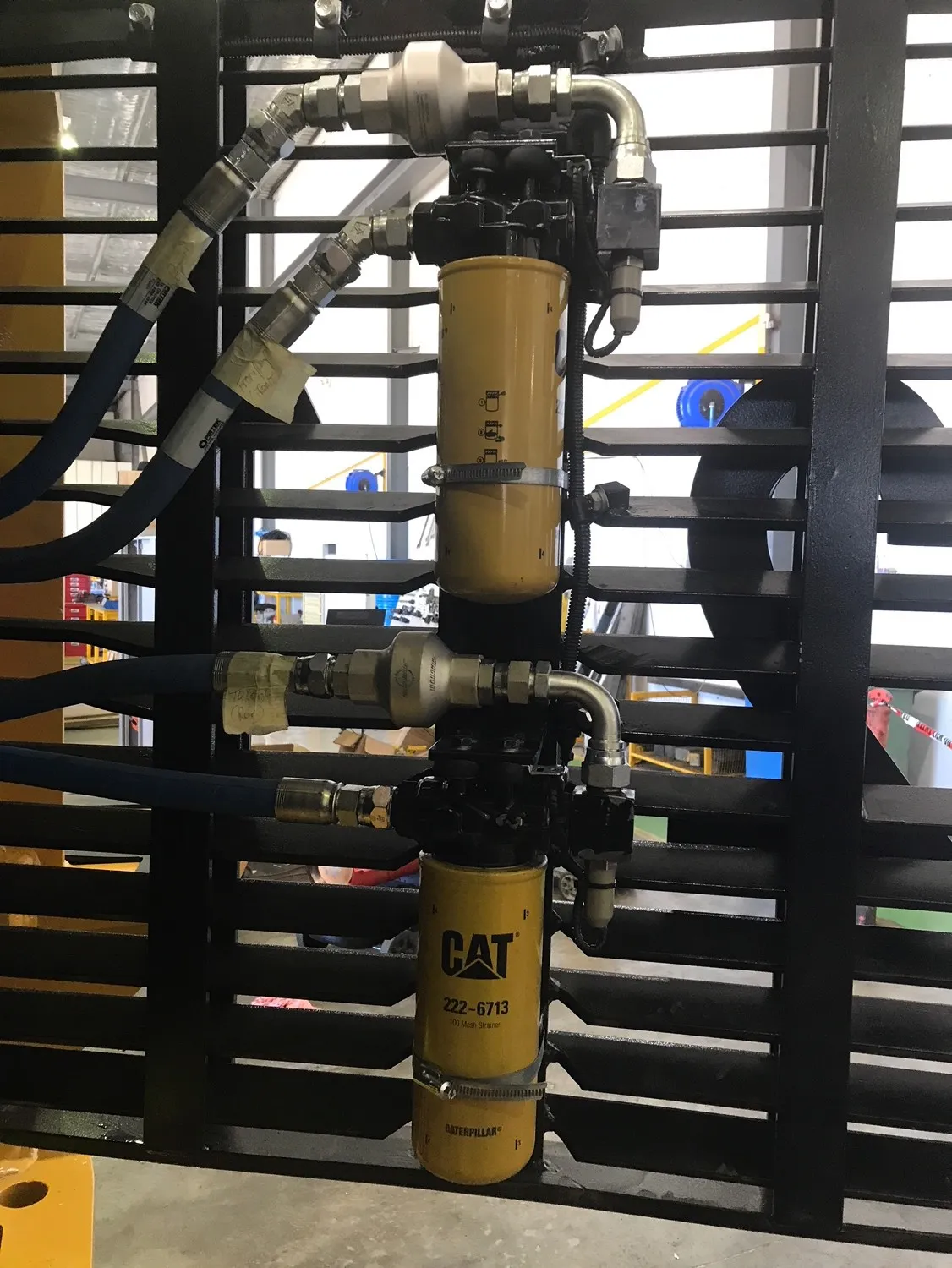

    Two in-line units above the filter heads.

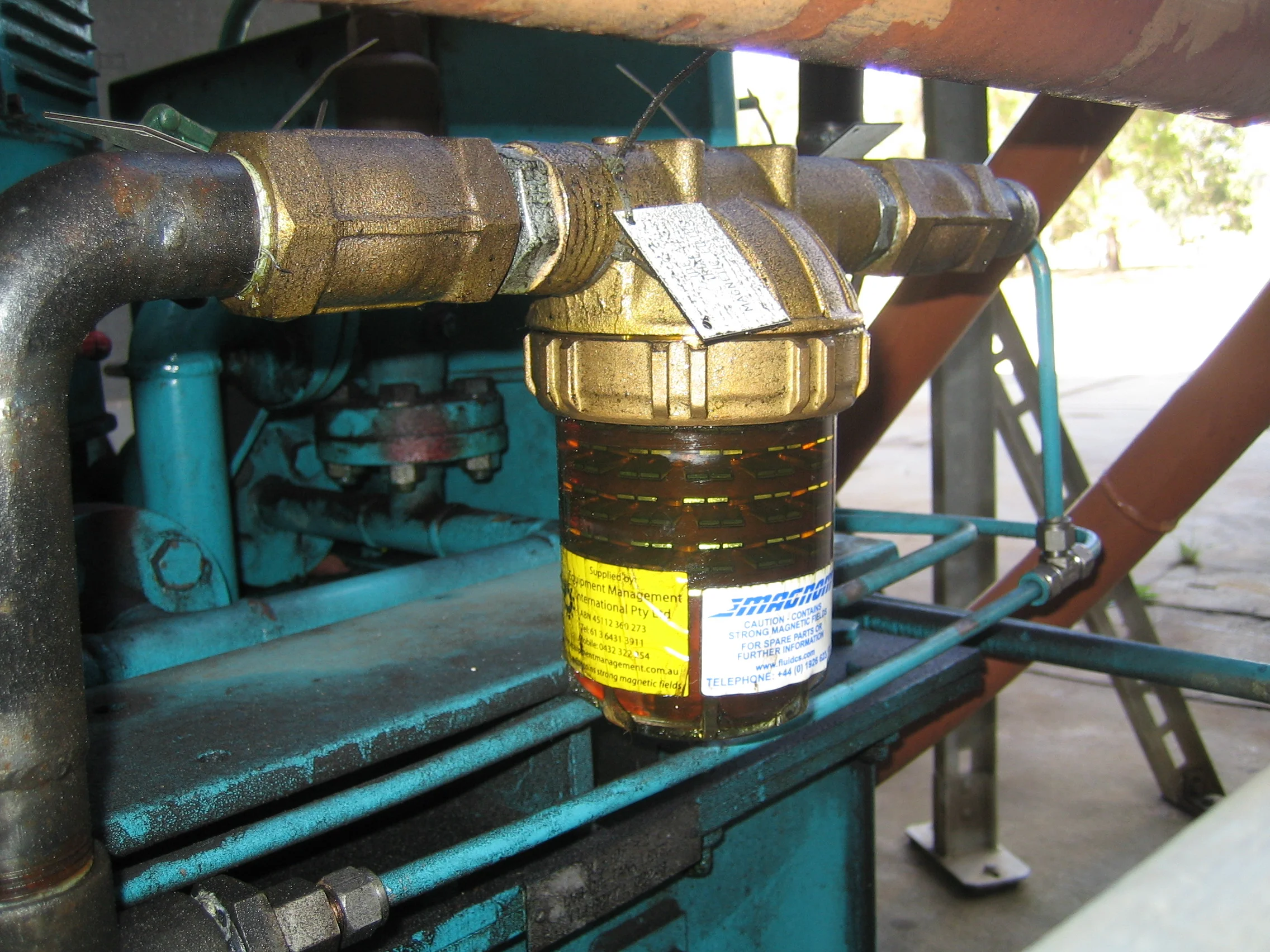

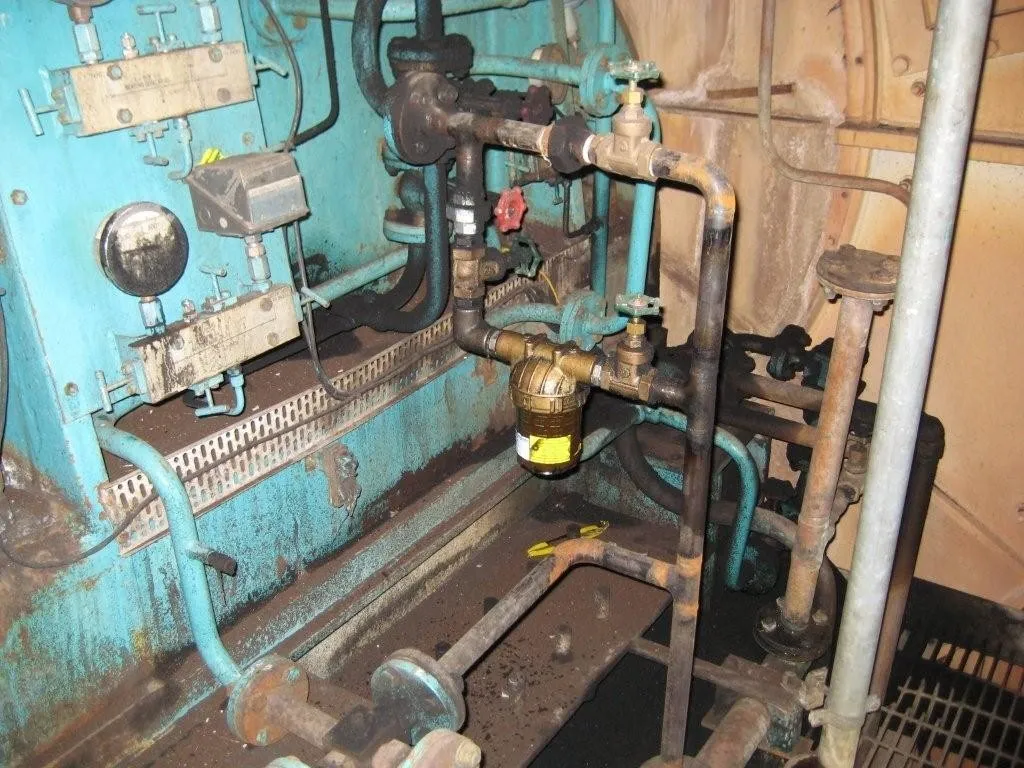

  • A Magnom Clear unit with a brass head in a lubrication line on industrial plant
    A Clear unit in a plant lubrication line.

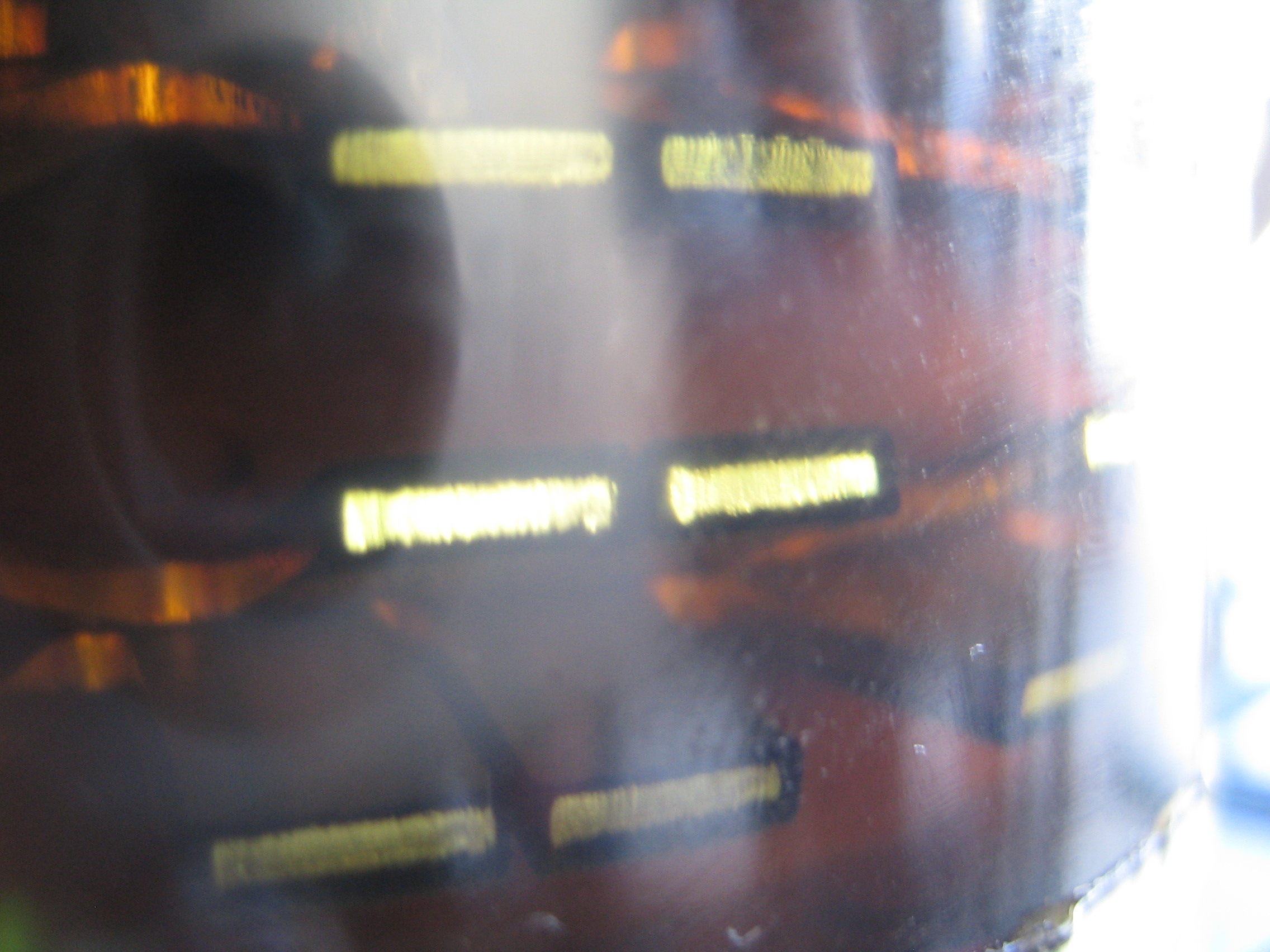

  • Close-up of a Magnom Clear bowl in service, the core visible through oil

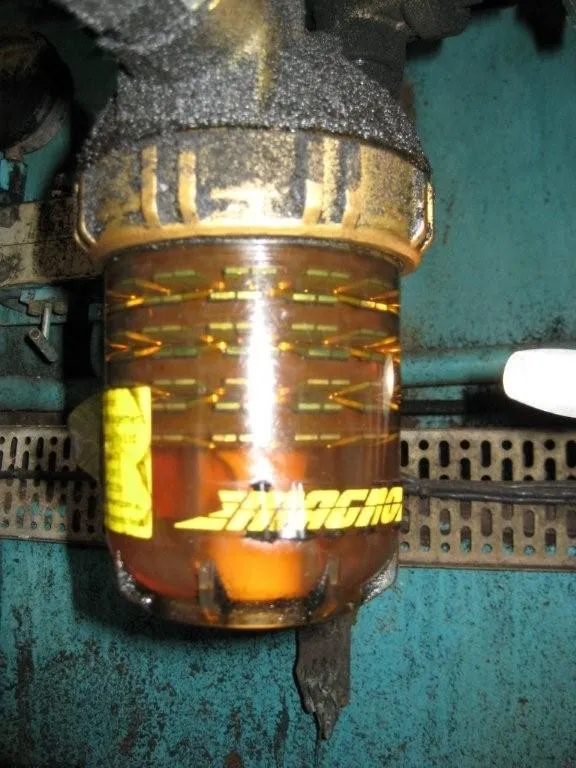

    The clear bowl shows the core without opening the unit.

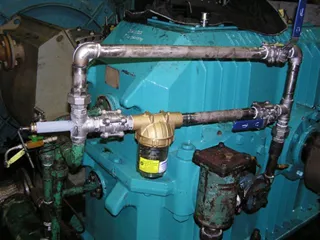

  • A Magnom Clear unit plumbed into the lubrication line of a gearbox
    On a gearbox lubrication line.

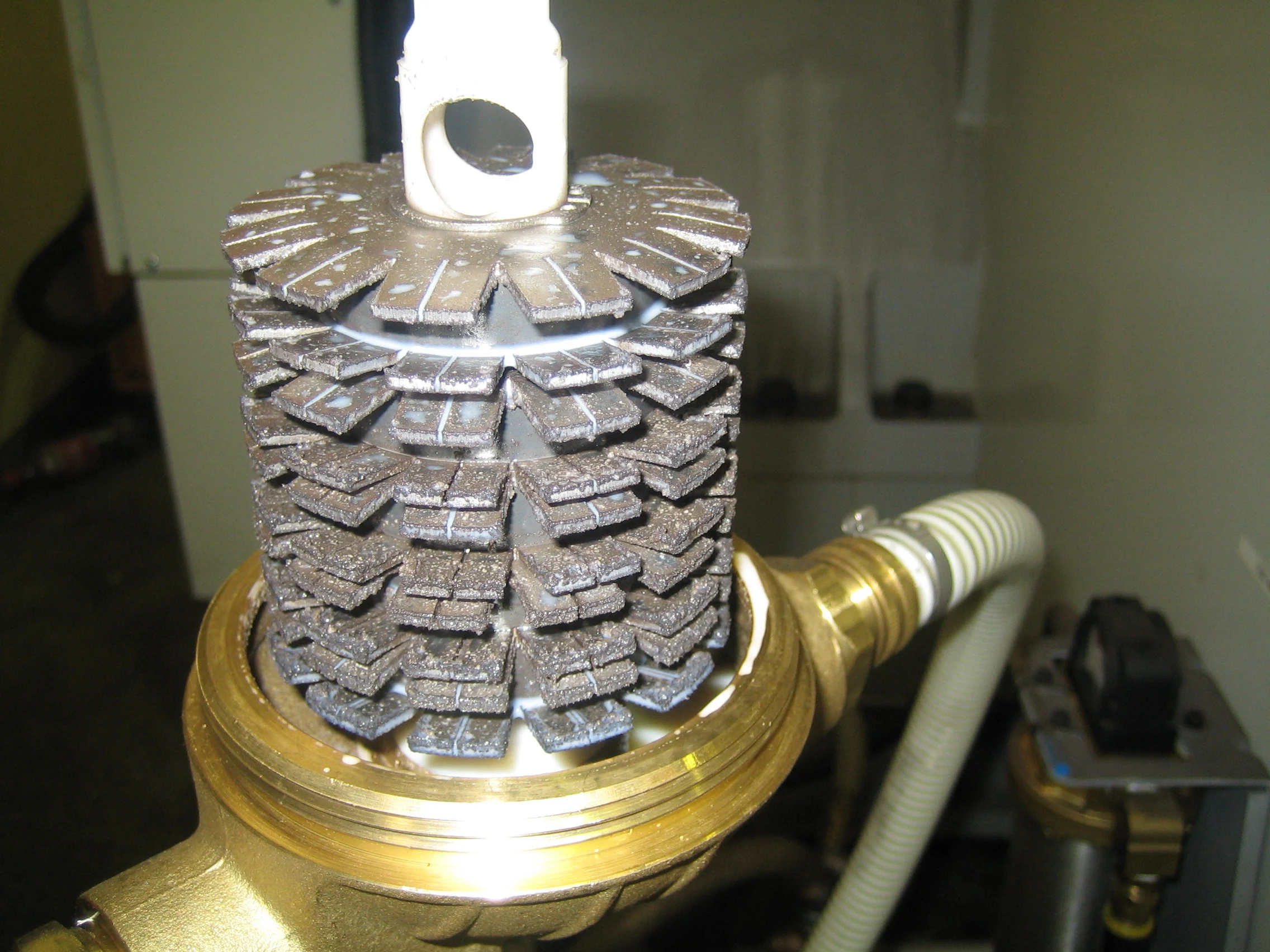

  • A Magnom Clear unit on the coolant system of a machine tool

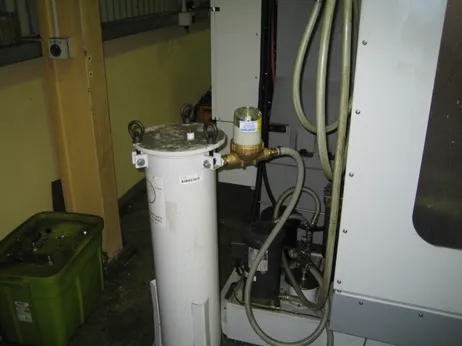

    On a machine tool coolant system.

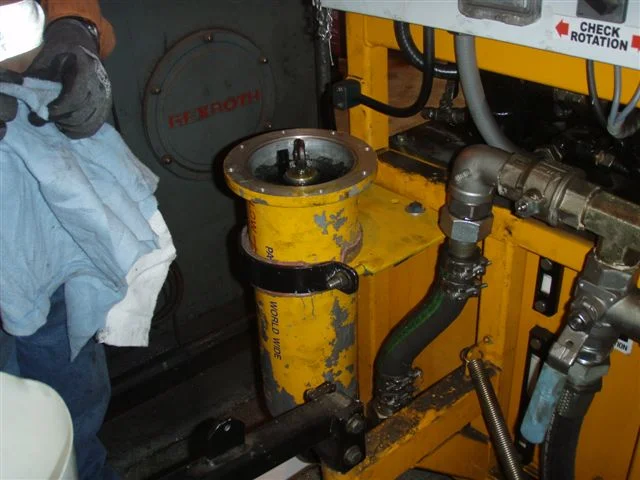

  • A technician wiping out a yellow Magnom housing opened on a machine
    A housing opened on the machine to clean the core.

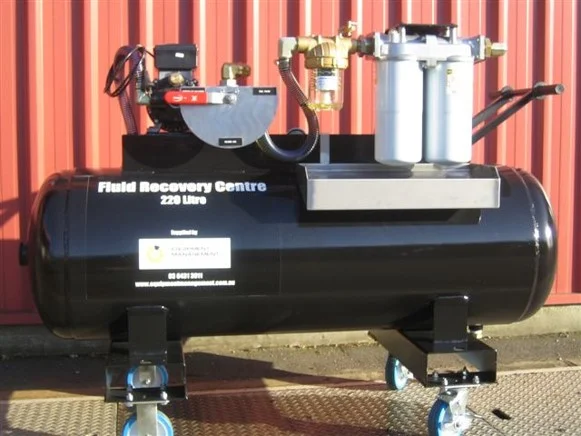

  • A filtration trolley with a Magnom unit connected by hoses to a large yellow machine

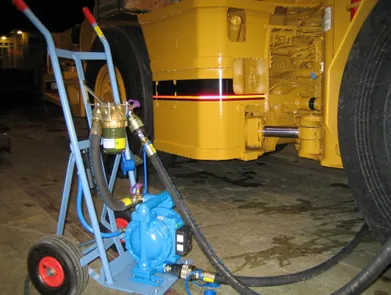

    A filtration trolley connected to a mobile machine.
  • A filtration trolley in a workshop carrying a Magnom Clear unit and a spin-on filter

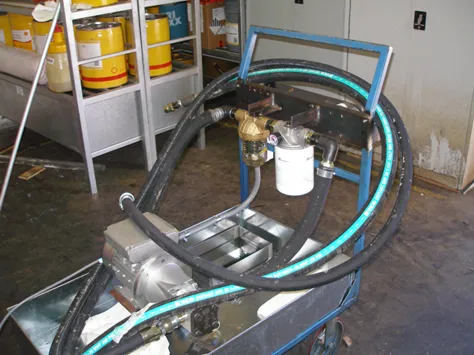

    A filtration trolley in the workshop.

What the cores collect.

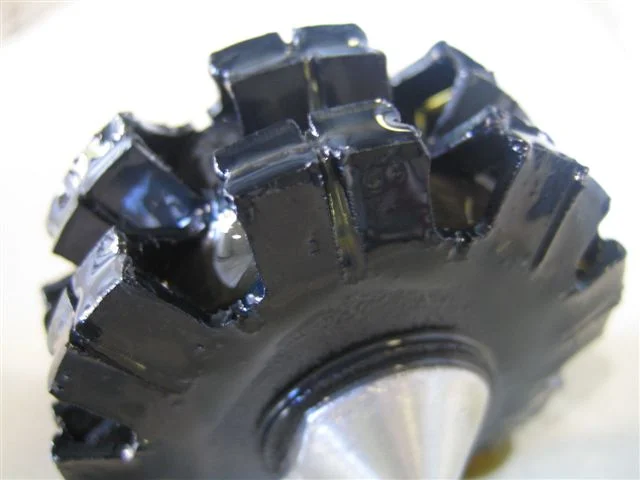

  • Close-up of a Magnom core packed with black ferrous debris
    Ferrous debris packed onto a core, close up.

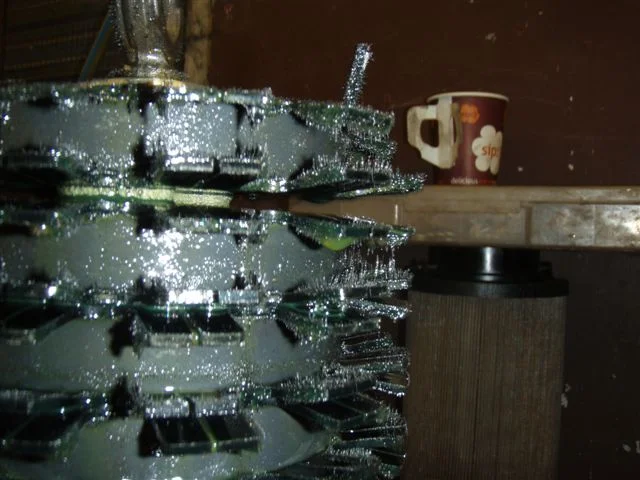

  • A Magnom core coated in oil and ferrous debris
    A core loaded with debris and oil.
  • A loaded Magnom core resting on a housing on site

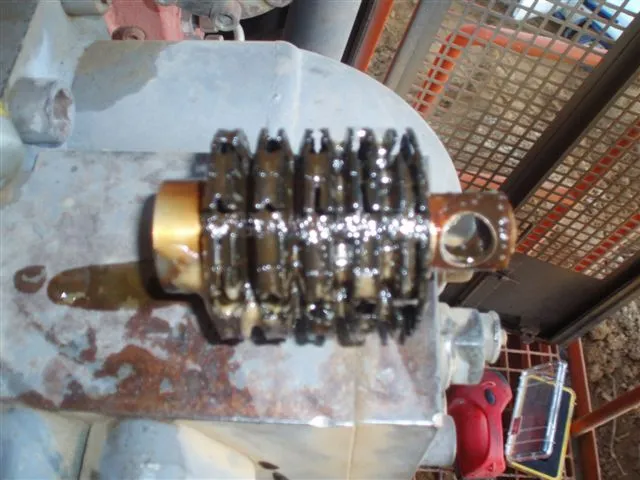

    A loaded core, just out of its housing.

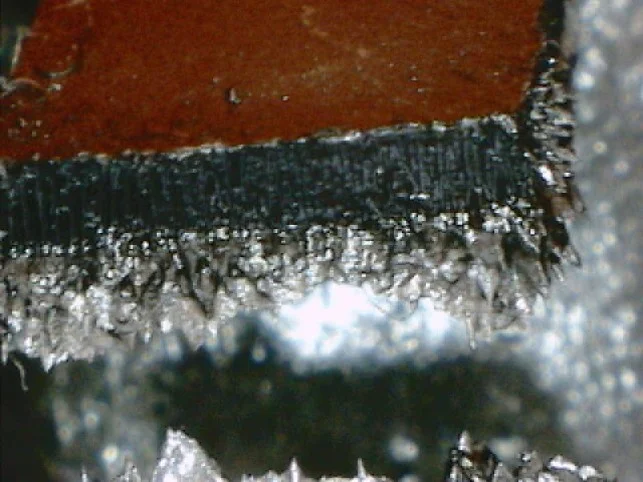

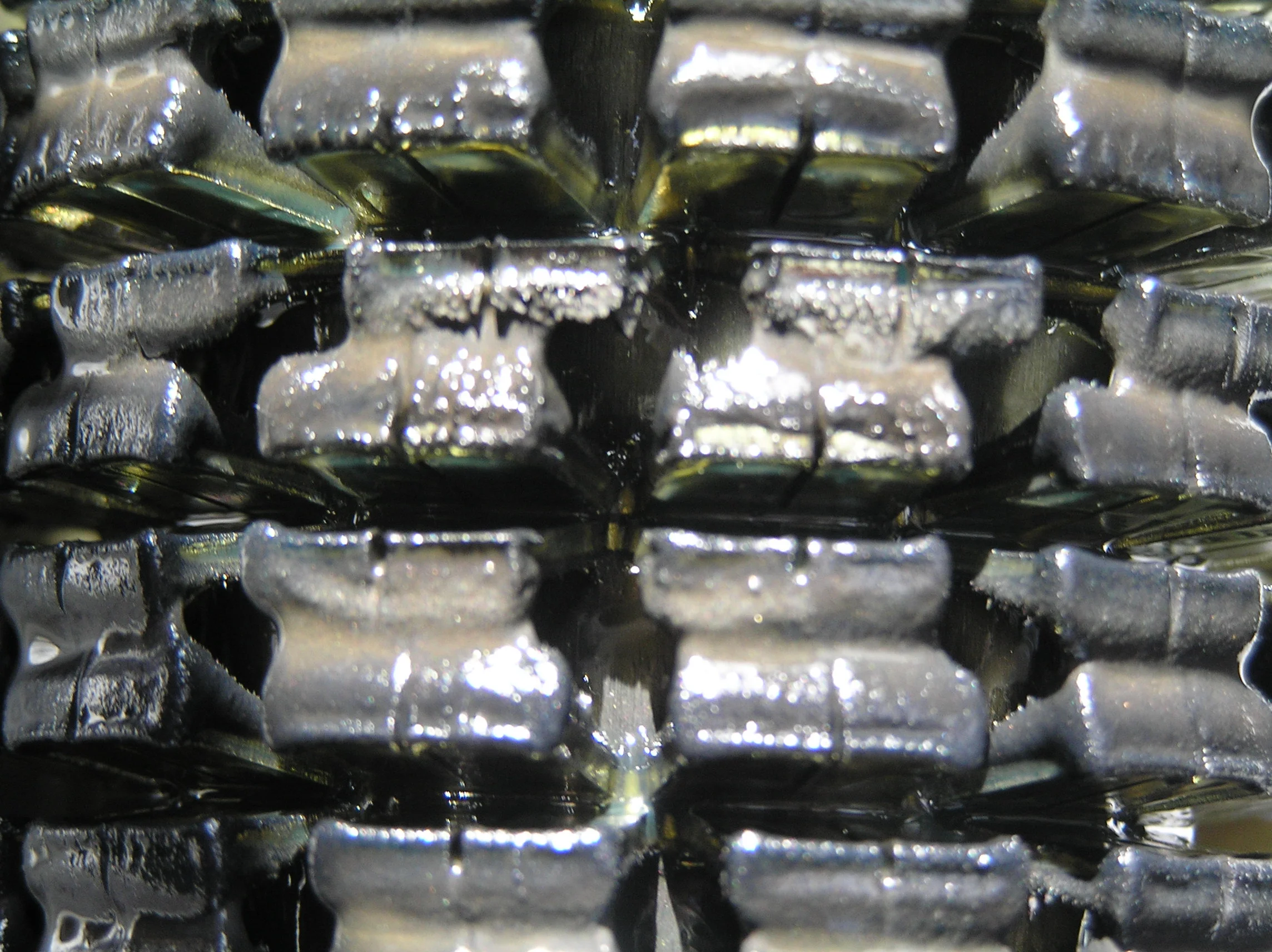

  • Ferrous particles standing on the edge of a magnetic core under a microscope
    Captured particles under the microscope at 50x.

With EMI3

Checking the core, as part of the service.

A magnetic filter only protects the system if someone looks at the core and cleans it. That visual check can be included as a task in the EMI3 maintenance applications, alongside the rest of the machine's service.

See ZoneMaintenance and RouteMaintenance.

Ask about Magnom filters.

Tell us the machine or system, the fluid and the connection size, and we will recommend a unit. Businesses interested in reselling Magnom in their region can use the same form.
